Experience precise, high-capacity linear motion with a 6000 N DC actuator that delivers for your most demanding applications.
-

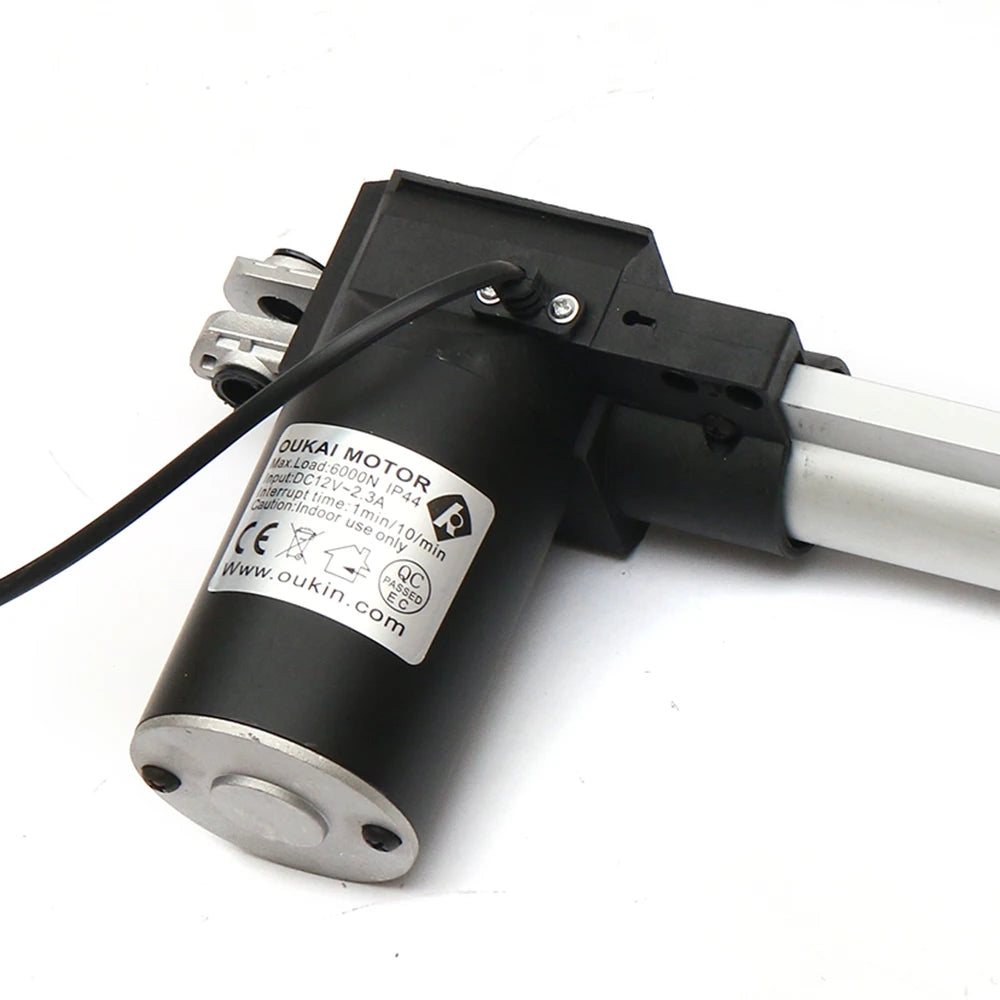

Powerful and fast: 12 V DC permanent-magnet motor delivers up to 6000 N push and 4000 N pull at 5 mm/s, with a 500 mm stroke.
-
Durable, quiet design: aluminum outer/inner tubes (Ø30 mm / Ø24 mm), IP44 protection, and only 48 dB noise when unloaded.
-
Reliable control: built-in, non-adjustable limit switches; duty cycle up to 10% (2 min on, 18 min off) for safe operation.
-

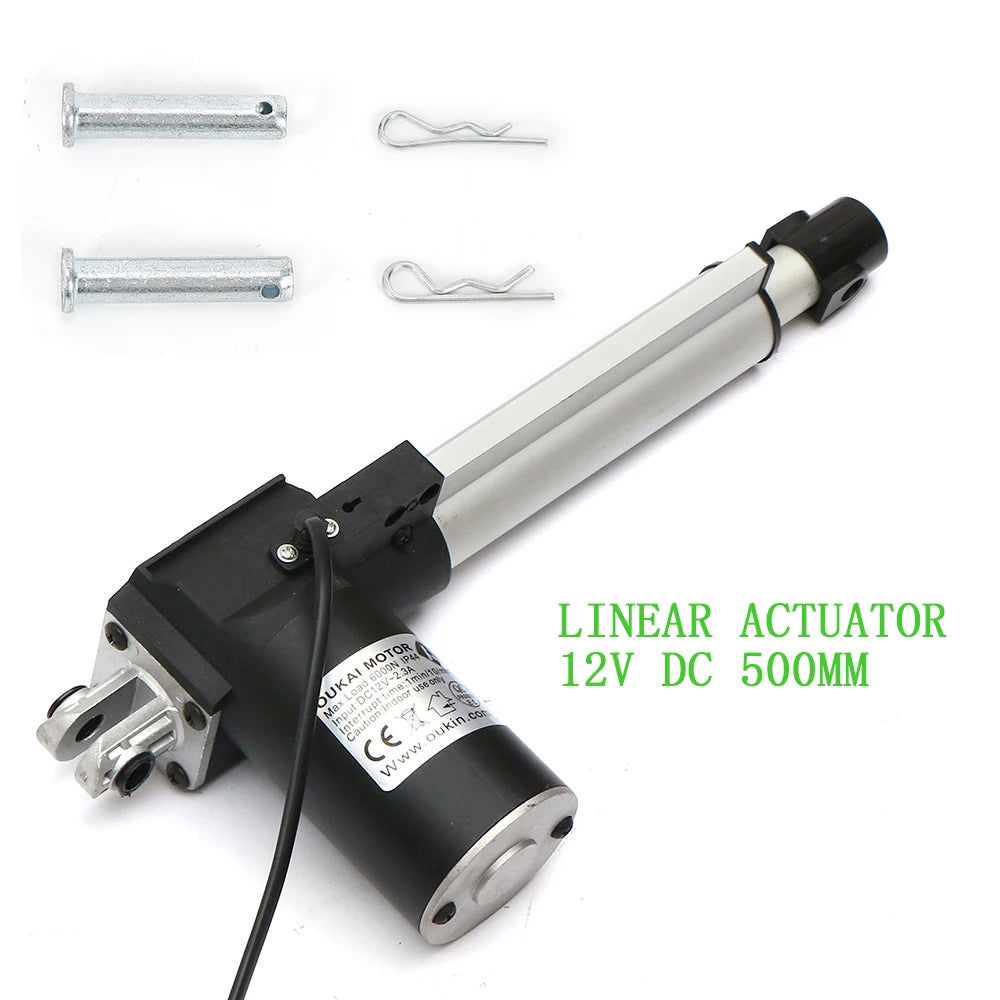

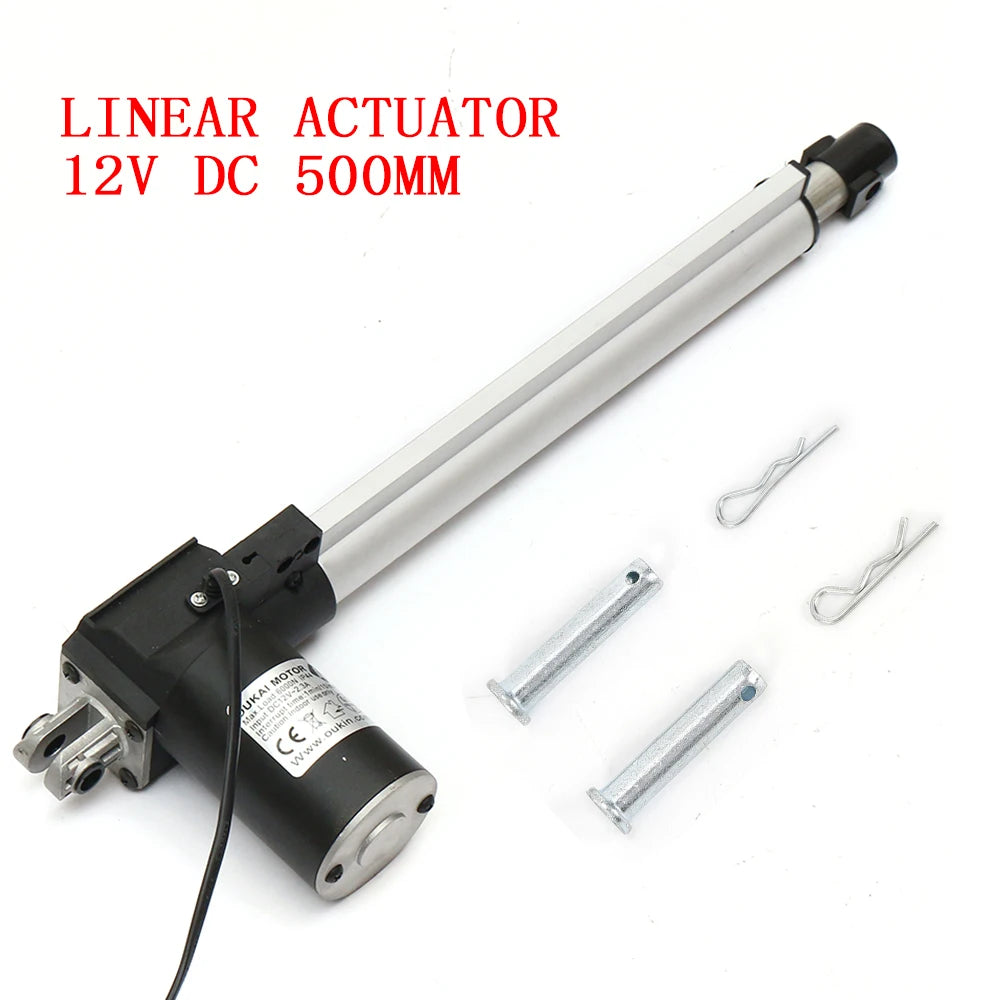

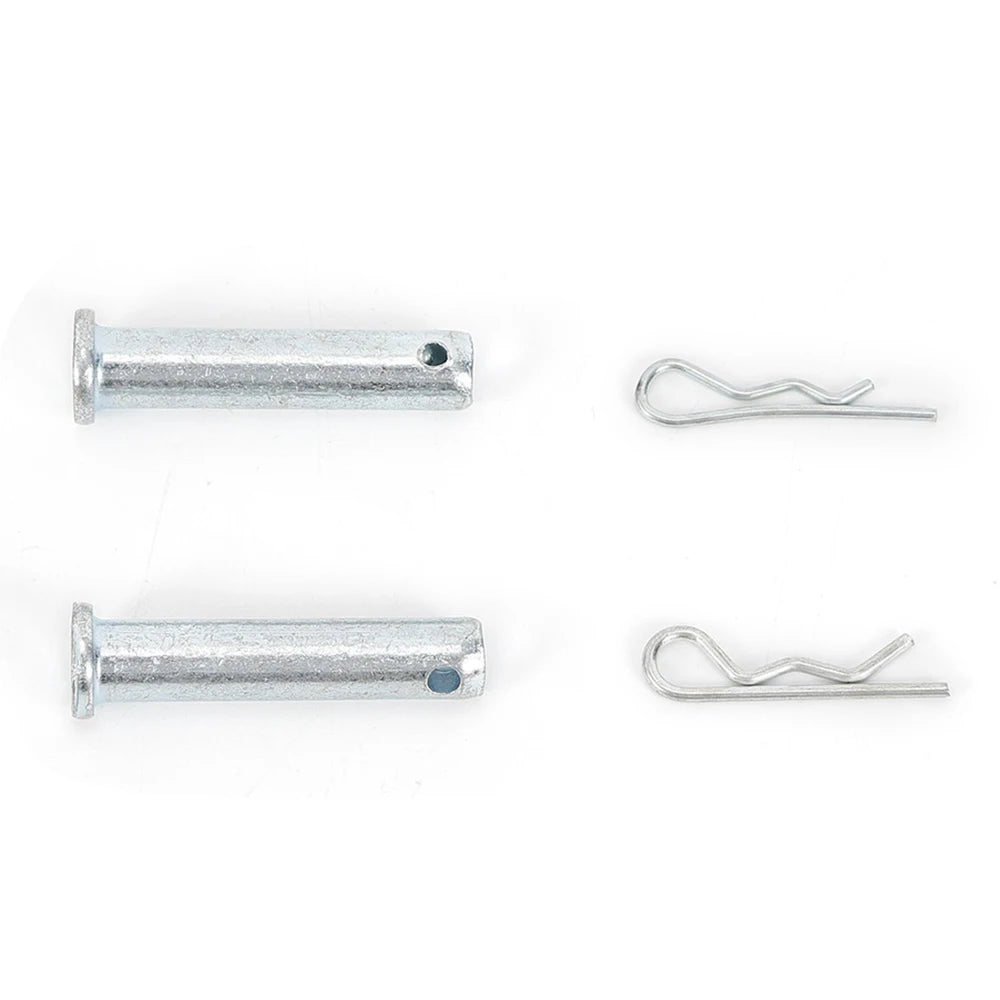

Easy installation and versatility: minimum installation size 675 mm; overall length 1175 mm; includes 1 x 500 mm actuator with accessories for use in beds, chairs, furniture, and machinery.
